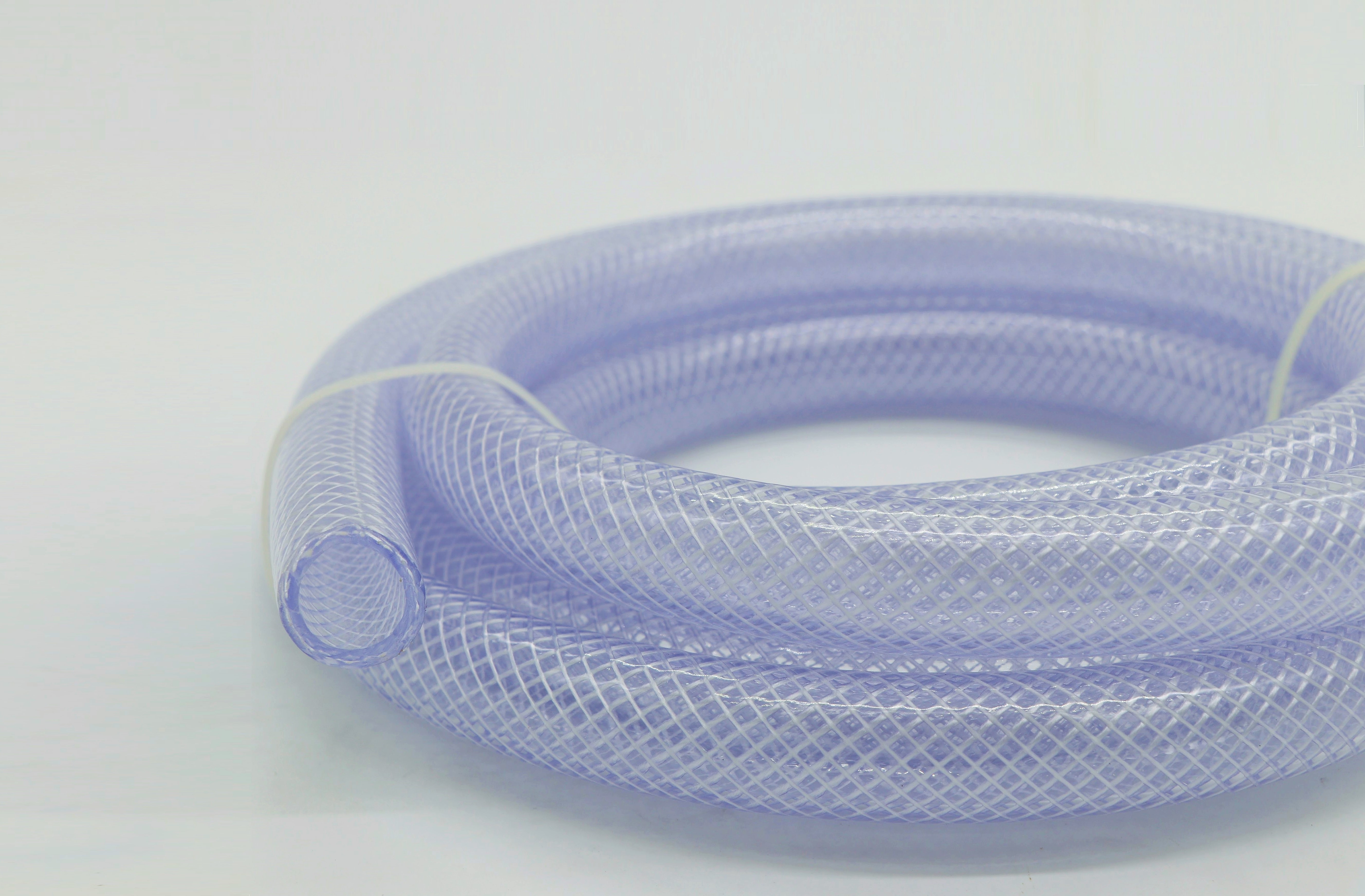

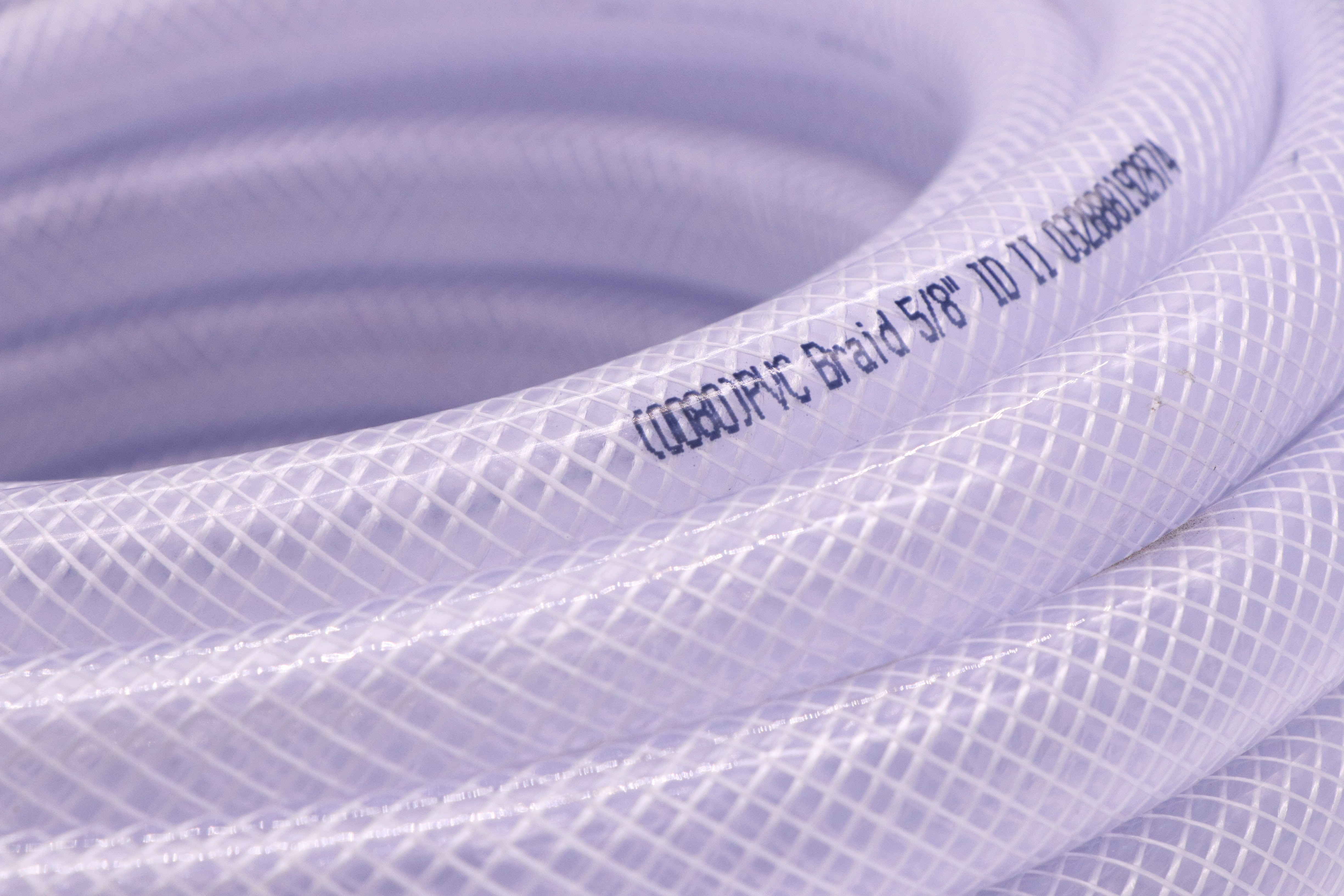

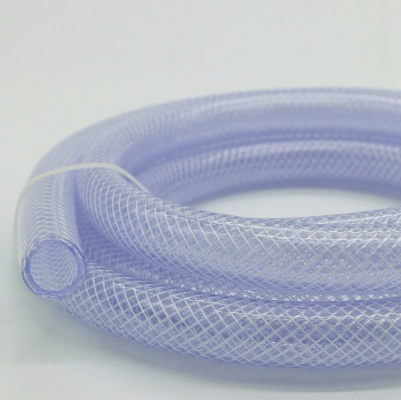

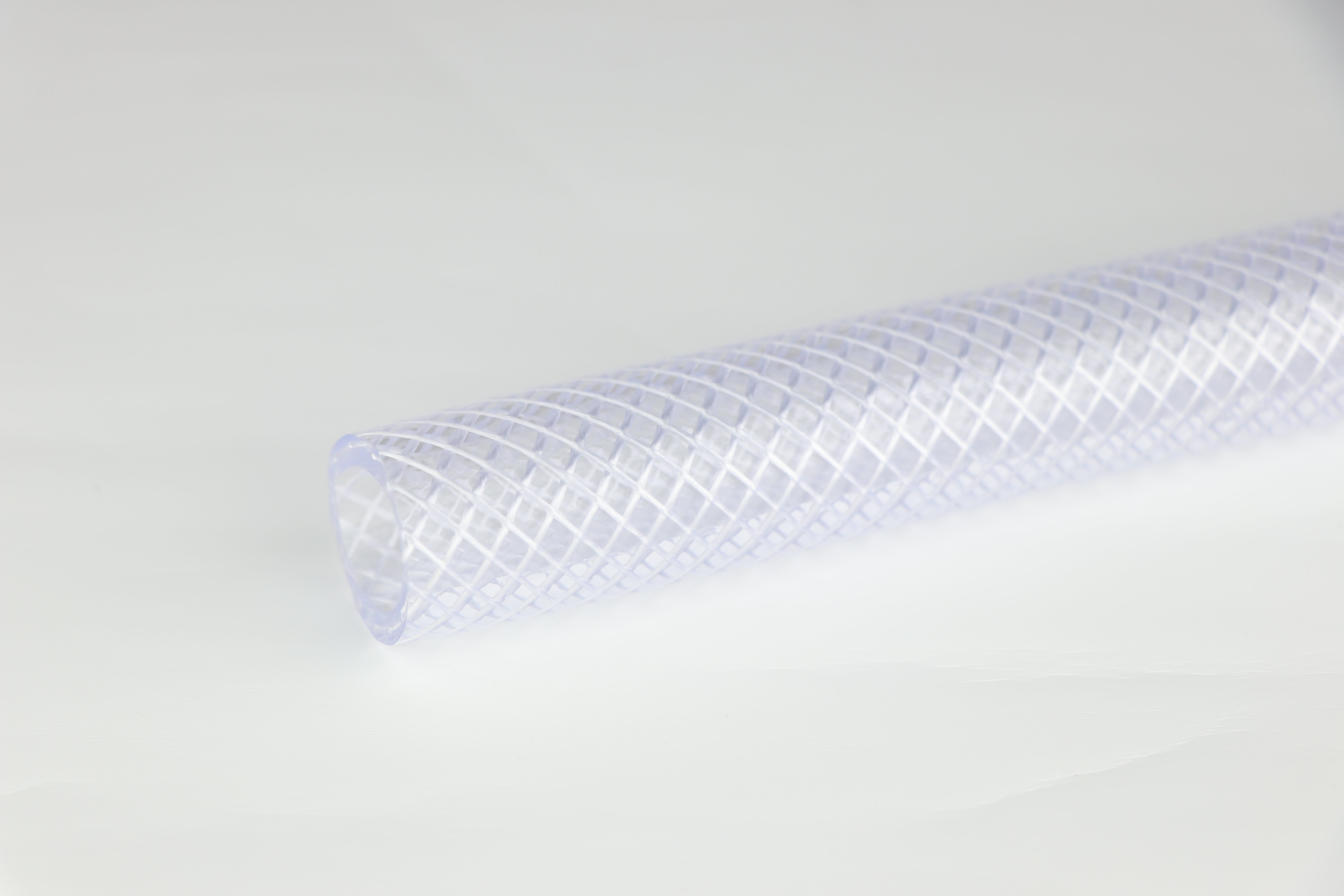

REINFORCED VINYL HOSE
See-through, flexible, glass smooth inner surface and reinforced with polyester, making Toford reinforced vinyl hose suitable for wide variety of industrial, commercial or home applications. Ideal for pressurized fluid and gas transfer and for pneumatic tools and air lines. The PVC compound used is in compliance with FDA CFR Title 21 requirements and the tubings are NSF372 listed certified lead-free.
Make: PVC & Polyester Reinforced Braiding
Color: Clear or translucent or colored
Hardness: Shore A 83±3
Toxicity: NSF372 Certified Lead-free, FDA CFR Title 21 Compliant
Temperature Range: -20°C ~ 60°C / -4°F ~ 140°F
Packaging Options: Bulk Spool, Pre-Cut, Dispenser
|
Item No. |
O.D. |
ID |
Wall Thickness |
Working Pressure
@68°F / 20°C
|
Burst Pressure
@68°F / 20°C
|
|
BV012014xxx-x-x |
1/2”, 11mm |
1/4”, 6mm |
1/8”, 3.2mm |
250psi, 17.2bar |
1000psi, 68.9bar |
|
BV058038xxx-x-x |
5/8”, 16mm |
3/8”, 10mm |
1/8”, 3.2mm |
225psi, 15.5bar |
800psi, 55.2bar |
|
BV034012xxx-x-x |
3/4”, 19mm |
1/2”, 13mm |
1/8”, 3.2mm |
200psi, 13.8bar |
800psi, 55.2bar |
|
BV078058xxx-x-x |
7/8”, 22mm |
5/8”, 16mm |
1/8”, 3.2mm |
175psi, 12.1bar |
700psi, 48.3bar |
|
BV001034xxx-x-x |
1”, 26mm |
3/4”, 19mm |
1/8”, 3.2mm |
150psi, 10.3bar |
600psi, 41.4bar |
|
BV138001xxx-x-x |
1-3/8”, 33mm |
1”, 25mm |
3/16”, 4.8mm |
125psi, 8.6bar |
500psi, 34.5bar |
|
BV134114xxx-x-x |
1-3/4”, 41mm |
1-1/4”, 32mm |
1/4”, 6.4mm |
100psi, 6.9bar |
400psi, 27.6bar |
|
BV002112xxx-x-x |
2”, 48mm |
1-1/2”, 38mm |
1/4”, 6.4mm |
75psi, 5.2bar |
300psi, 20.7bar |
|
BV212002xxx-x-x |
2-1/2”, 62mm |
2”, 51mm |
1/4”, 6.4mm |
70psi, 4.8bar |
300psi, 20.7bar |
