tFLEX HOSES

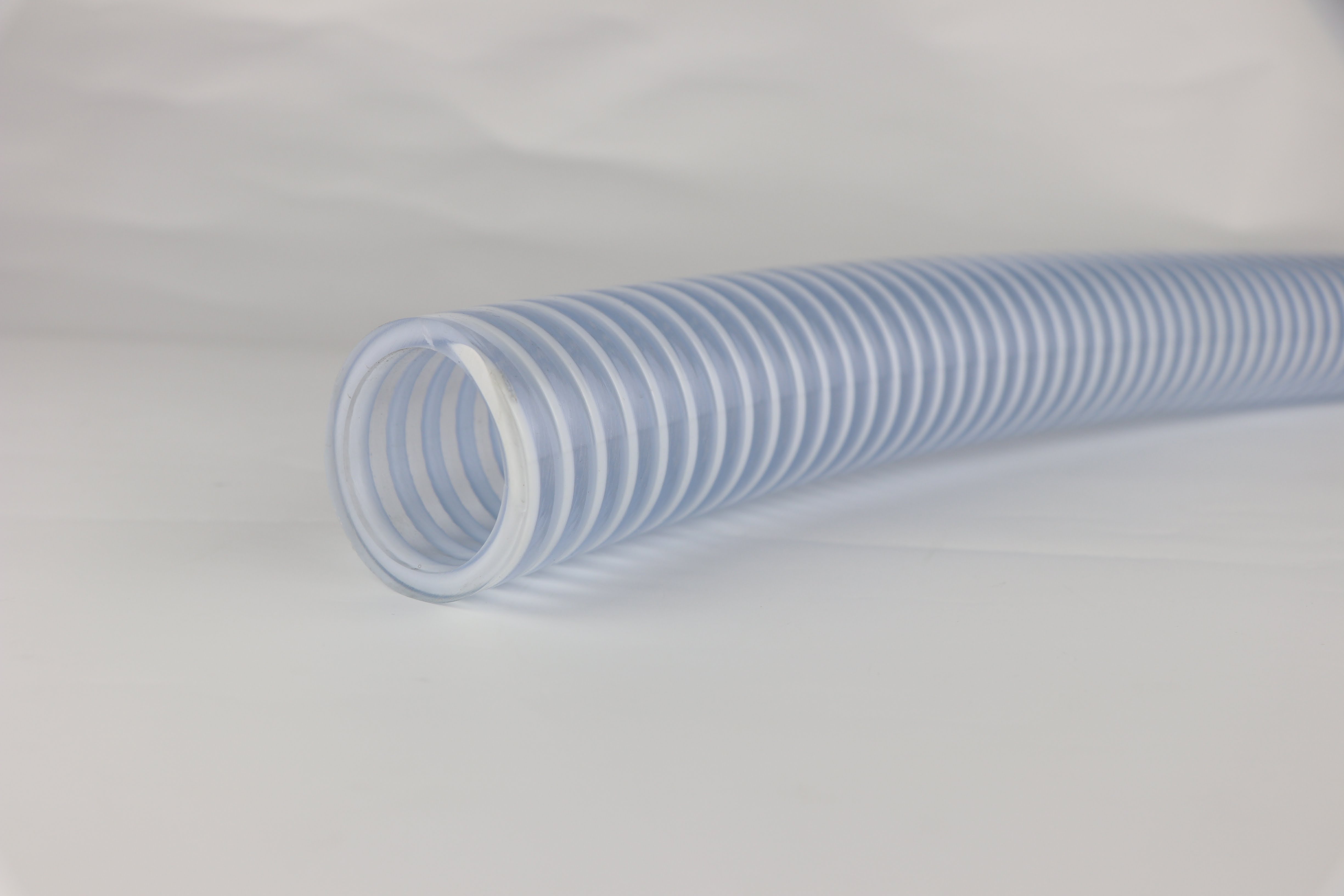

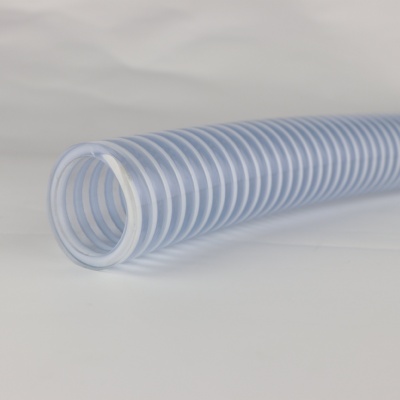

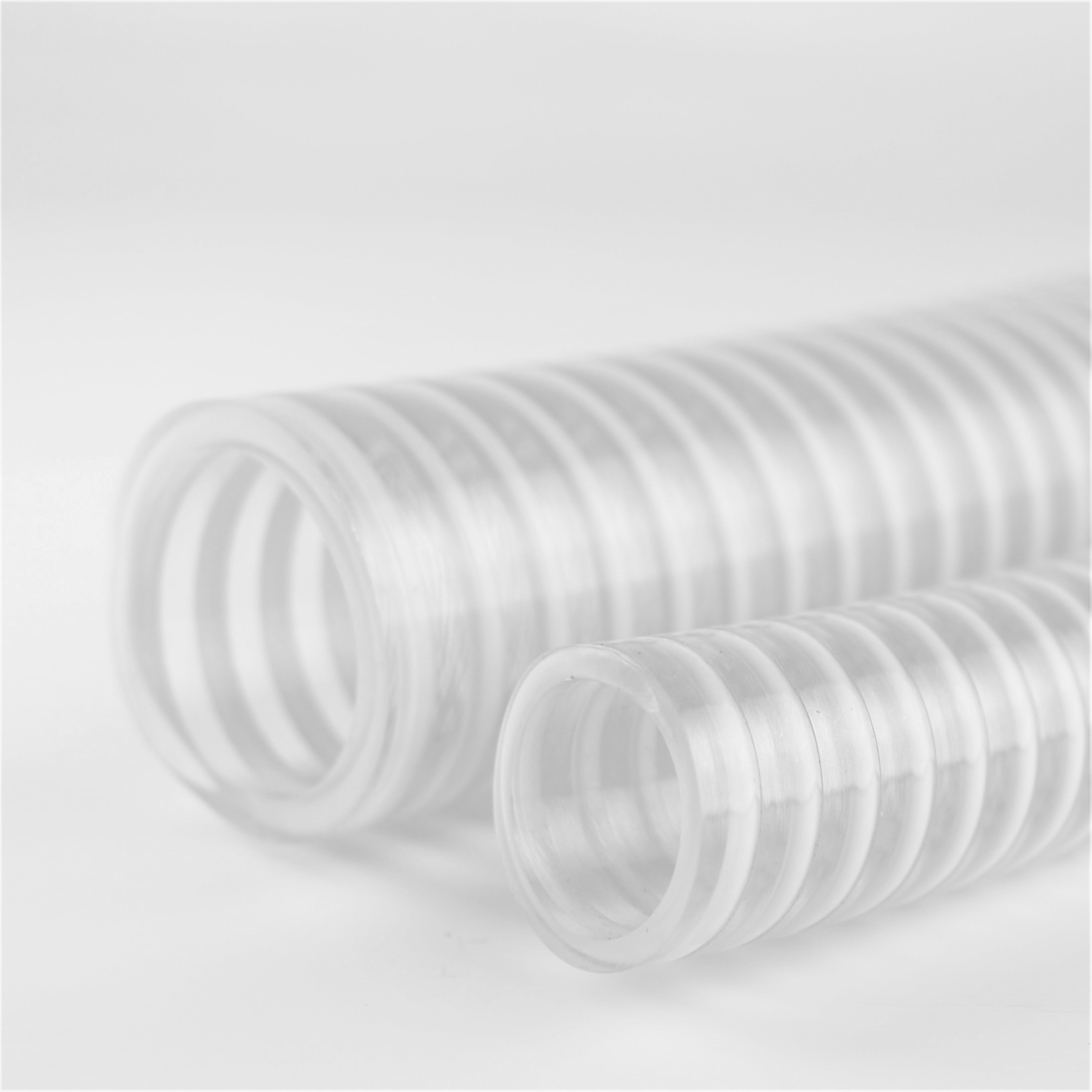

HELIX REINFORCED SUCTION AND SPA HOSE
Designed for a wide array of suction and pressure applications from the light-duty pumping of fluids to the heavy duty small solid transfer. The non-toxic, good alkalis and acid resistance interior are suitable for transfer of potable water to mild chemicals. The smooth and abrasion resistant interior enable optimal transport of abrasive media at a high delivery rate while maintaining a long service life. The clear wall permits good visibility where visual inspection is required. For the application that does not permit contact with lights, opaque wall option is available. The low-temperature soft PVC enables the hose to remain flexible in subzero environments.
Make: Flexible PVC reinforced with rigid PVC helix integrated in the wall; low temperature soft PVC
Toxicity: FDA, NSF372 certified
Temperature Range: -10°C ~ 60°C / -14°F ~ 140°F
Standard Length: 10m, 15m, 23m / 25ft, 50ft, 75ft

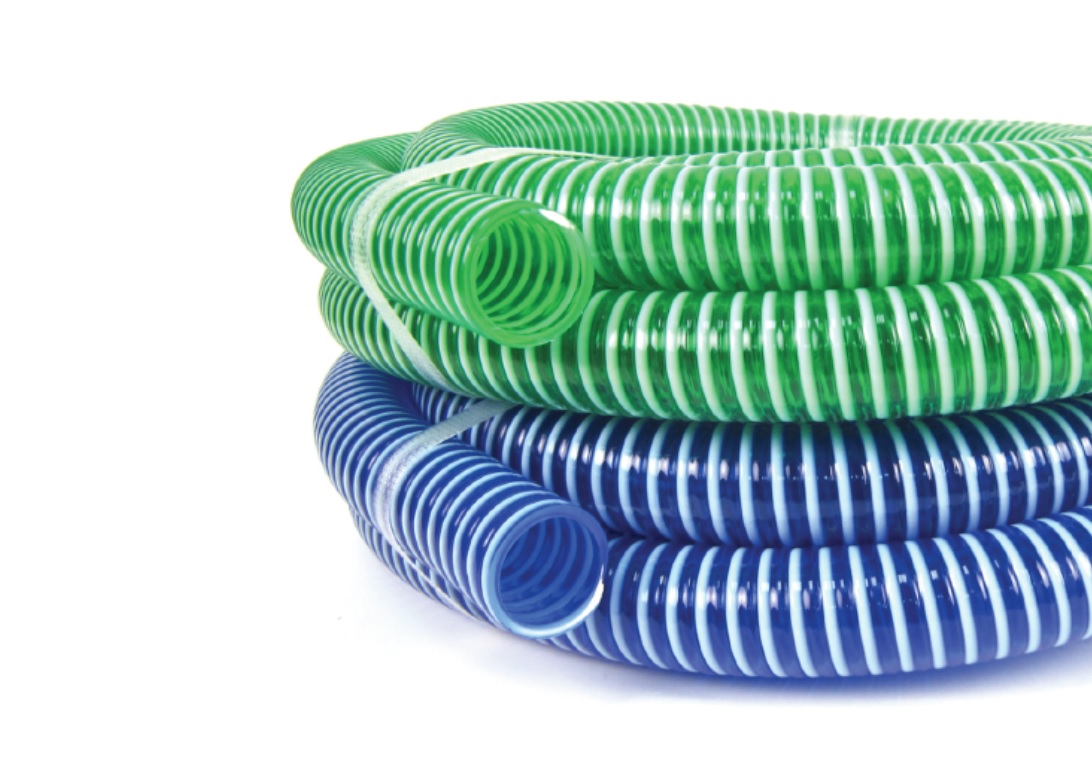

Color: translucent or colored
tFLEX SUCTION - MEDIUM DUTY
Designed for most standard suction and pressure applications. The smooth interior enables the efficient transfer of clear fluids, and low volume small solids. The non-toxic interior is suitable for the transfer of potable water.
|
Item No. |
Nominal
Size
(in)
|
ID
(mm)
|
OD
(mm)
|
Wall
Thickness
(mm)
|
Burst Pressure
(@21°C / 70°F)
(bar ) (psi)
|
Vaccum Rating
(inHg) (bar)
|
Bend
Radius
(mm)
|
Standard
Length
(m)
|
|
TF019Mxxx |
3/4 |
19 |
23.8 |
2.4 |
18, 260 |
17.8, 0.60 |
110 |
10, 15, 23 |
|
TF025Mxxx |
1 |
25 |
30.2 |
2.6 |
18, 260 |
17.8, 0.60 |
140 |
10, 15, 23 |
|
TF032Mxxx |
1-1/4 |
32 |
37.8 |
2.9 |
15, 220 |
17.8, 0.60 |
180 |
10, 15, 23 |
|
TF038Mxxx |
1-1/2 |
38 |
44.4 |
3.2 |
15, 220 |
17.8, 0.60 |
210 |
10, 15, 23 |
|
TF040Mxxx |
1-5/8 |
40 |
46.6 |
3.3 |
15, 220 |
17.8, 0.60 |
220 |
10, 15, 23 |
|
TF051Mxxx |
2 |
51 |
58.0 |
3.5 |
12, 175 |
17.8., 0.60 |
270 |
10, 15, 23 |
|
TF076Mxxx |
3 |
76 |
84.4 |
4.2 |
9, 130 |
14.8, 0.50 |
400 |
10, 15, 23 |
|
TF100Mxxx |
4 |
101 |
111 |
5 |
6, 90 |
14.8, 0.50 |
500 |
10, 15, 23 |
tFLEX SUCTION - HEAVY DUTY
Designed for heavy duty suction and pressure applications. The smooth interior enables efficient high-volume transfer of clear fluids, and small solids. The abrasion resistant interior enables transport of abrasive media at a high delivery rate while maintaining a long service life.
|
Item No. |
Nominal
Size
(in)
|
ID
(mm)
|
OD
(mm)
|
Wall
Thickness
(mm)
|
Burst Pressure
(@21°C / 70°F)
(bar ) (psi)
|
Vaccum Rating
(inHg) (bar)
|
Bend
Radius
(mm)
|
Standard
Length
(m)
|
|
TF019Hxxx |
3/4 |
19 |
24.6 |
2.8 |
27, 400 |
20.6, 0.70 |
110 |
10, 15, 23 |
|
TF025Hxxx |
1 |
25 |
31.2 |
3.1 |
24, 350 |
20.6, 0.70 |
140 |
10, 15, 23 |
|
TF032Hxxx |
1-1/4 |
32 |
38.8 |
3.4 |
17, 250 |
20.6, 0.70 |
180 |
10, 15, 23 |
|
TF038Hxxx |
1-1/2 |
38 |
45.4 |
3.7 |
14, 200 |
20.6, 0.70 |
210 |
10, 15, 23 |
|
TF040Hxxx |
1-5/8 |
40 |
47.6 |
3.8 |
14, 200 |
20.6, 0.70 |
220 |
10, 15, 23 |
|
TF051Hxxx |
2 |
51 |
59.6 |
4.3 |
14, 200 |
20.6, 0.70 |
270 |
10, 15, 23 |
|
TF076Hxxx |
3 |
76 |
86 |
5 |
12, 175 |
20.6, 0.70 |
400 |
10, 15, 23 |
|
TF100Hxxx |
4 |
101 |
113 |
6 |
8, 120 |
17.7, 0.60 |
500 |
10, 15, 23 |
