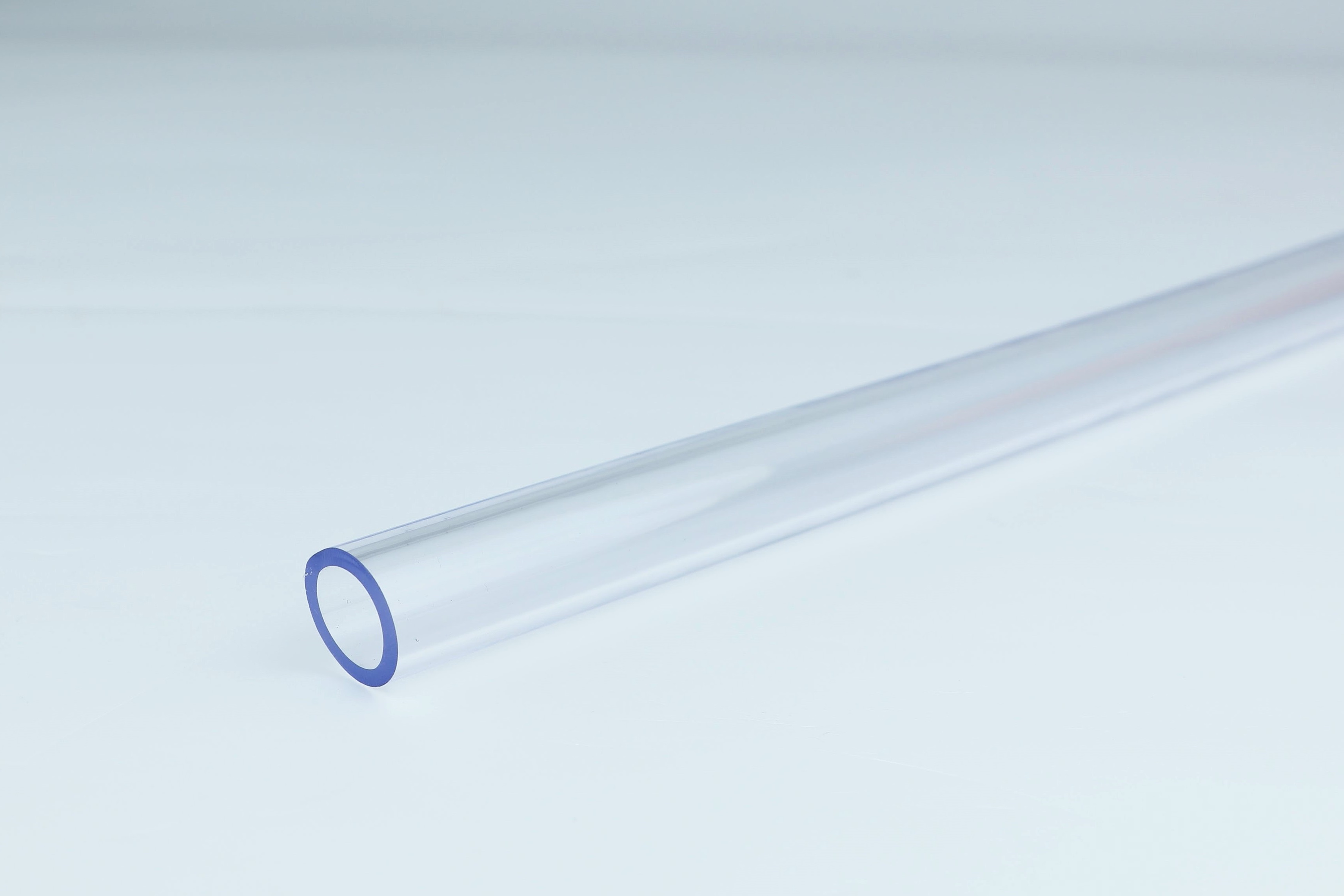

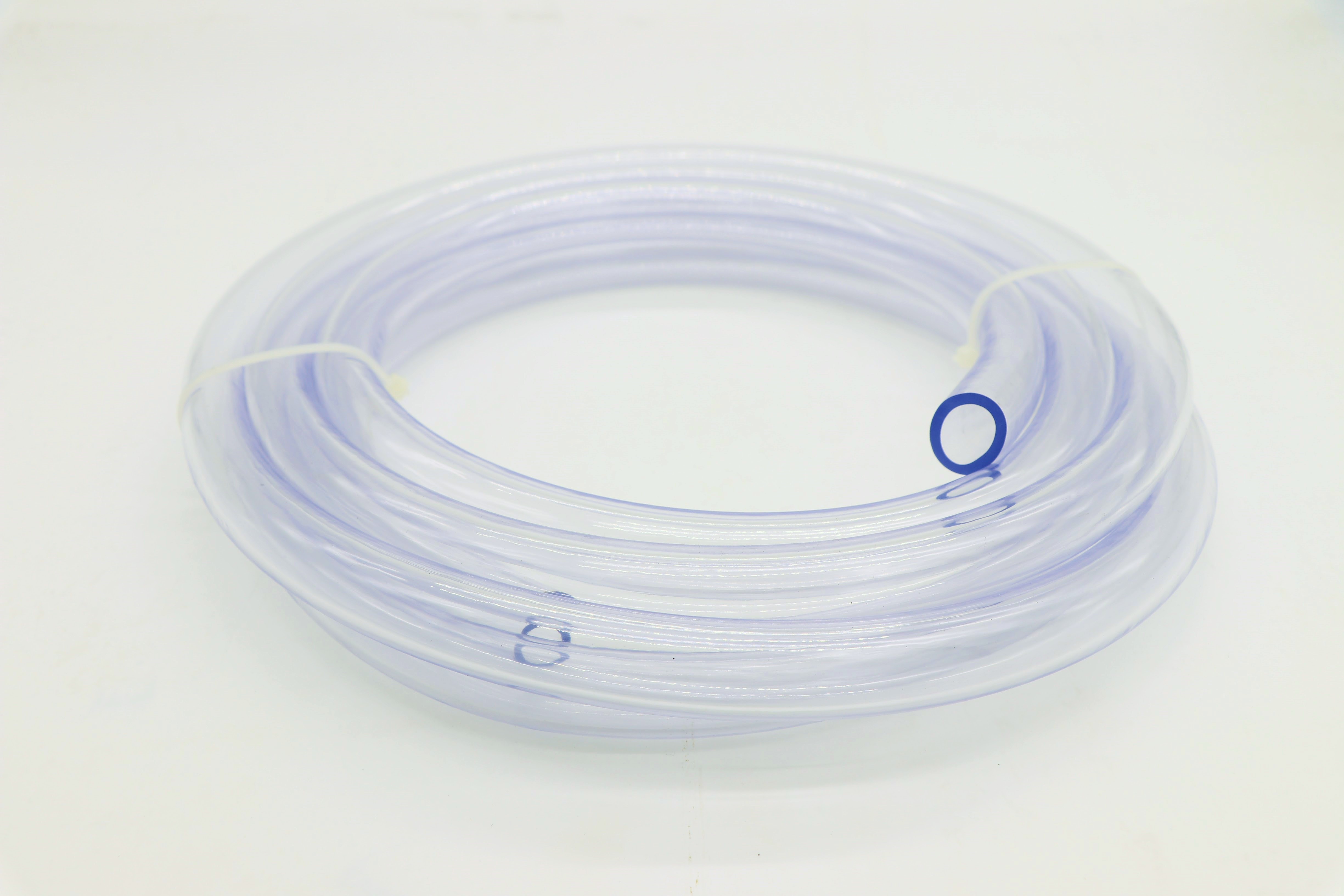

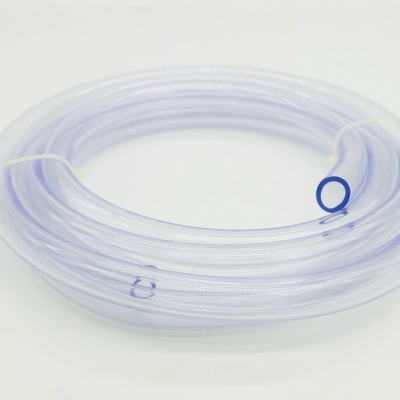

UNREINFORCED VINYL TUBING
Toford unreinforced vinyl tubing is suitable for wide variety of applications. The streamlined inner surface maximizes flow and reduces buildup, making it ideal for beverage dispensing, potable water transfer, laboratory tubing, drain lines and various low-pressure fluid transfer applications. The PVC compound used is in compliance with FDA CFR Title 21 requirements and the tubings are NSF372 listed certified lead-free.
Make: PVC
Color: Clear or translucent or colored
Hardness: Shore A 83±3
Toxicity: NSF372 Certified Lead-free, FDA CFR Title 21 Compliant
Temperature Range: -20°C ~ 60°C / -4°F ~ 140°F
Packaging Options: Bulk Spool, Pre-Cut, Dispenser
Unreinforced Vinyl - US Market - Imperial Size
|
Item No. |
O.D. |
I.D. |
Wall Thickness |
Working Pressure
@20°C / 68°F
|
|
VT316018xxx-x-x |
3/16” |
5mm |
1/8” 3mm |
1/32” 0.8mm |
55psi 3.8bar |
|
VT014017xxx-x-x |
1/4" |
6mm |
0.17” 4mm |
1/25” 1mm |
55psi 3.8bar |
|
VT516316xxx-x-x |
5/16” |
8mm |
3/16” 5mm |
1/16” 1.6mm |
55psi 3.8bar |
|
VT038014xxx-x-x |
3/8” |
10mm |
1/4” 6mm |
1/16” 1.6mm |
55psi 3.8bar |
|
VT716516xxx-x-x |
7/16” |
11mm |
5/16” 8mm |
1/16” 1.6mm |
50psi 3.5bar |
|
VT916038xxx-x-x |
9/16” |
14mm |
3/8” 10mm |
3/32" 2.4mm |
45psi 3.1bar |
|
VT058012xxx-x-x |
5/8” |
16mm |
1/2” 11mm |
1/16” 1.6mm |
45psi 3.1bar |
|
VT034058xxx-x-x |
3/4” |
19mm |
5/8” 16mm |
1/16” 1.6mm |
30psi 2bar |
|
VT001034xxx-x-x |
1” |
25mm |
3/4” 19mm |
1/8” 3.2mm |
35psi 2.4bar |
|
VT114001xxx-x-x |
1-1/4” |
32mm |
1” 26mm |
1/8” 3.2mm |
25psi 1.7bar |
|
VT158114xxx-x-x |
1-5/8" |
41mm |
1-1/4” 32mm |
3/16” 4.8mm |
30psi 2bar |
|
VT178112xxx-x-x |
1-7/8” |
48mm |
1 1/2” 38mm |
3/16” 4.8mm |
25psi 1.7bar |
